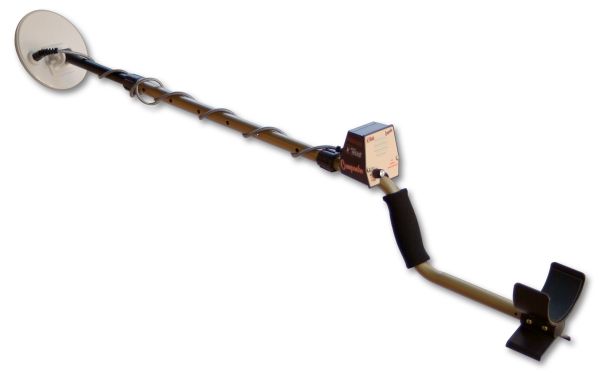

TESORO COMPADRE METAL DETECTOR
|

|
SPECIFICATIONS
| Operating
Frequency............. |
|
12
kHz |
| Searchcoil
Type..................... |
|
Round concentric,
hardwired |
| Searchcoil
Size..................... |
|
5.75" |
| Cable
Length......................... |
|
Approx. 3’ |
| Audio
Frequency................... |
|
Approx. 630 Hz |
Audio Output..........................
|
|
1½” speaker &
headphone jack |
| Headphone
Compatibility....... |
|
¼” stereo plug |
| Weight
(may vary slightly)....... |
|
2.2 lbs. |
| Battery
Requirement............... |
|
One 9 volt DC
(alkaline) |
| Battery
Life (typical)................ |
|
10 to 25 hours |
| Optimum
Temp. Range.......... |
|
30° to 100° F |
| Optimum
Humidity.................. |
|
0 to 75% R.H. |
| Operating
Modes................... |
|
Silent Search
Discriminate |
|
The Tesoro Compadre was designed with the idea that
less is more. This modest machine can do a lot of
the same things that its bigger brothers can do. It
works great for coin hunting, competition hunting
and relic hunting, but it does it without any excess

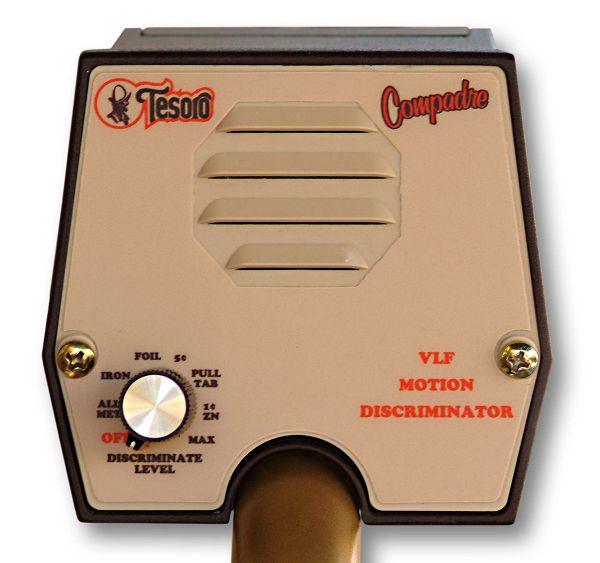

knobs. Switch on the detector and you're working in
a silent search, motion all metal mode. The farther
you turn the knob, the more discrimination you can
bring to bear on those trashy sites. The
Compadre now comes standard with a 5.75" round
concentric coil. The depth is equivalent to the original
7" concentric, plus the new coil reduces the
likelihood of target masking in extremely trashy ground.
It also gives you the ability to get into and around
natural obstacles like bushes, fences, and playground
equipment.
The Compadre has it all. One knob simplicity for the
beginner and high gain circuitry and the famous Tesoro
ED-180 discrimination for the advanced user. If one
detector can do all of this, maybe less is more.

|
|
|
