TESORO DELEON METAL DETECTOR

Tesoro Deleon Metal Detector
Retail Price $599.00 Our Price $509.15
Qty: Price: $509.15
Free Shipping

View Shopping Cart | Empty Shopping Cart


DeLeon Logo

DeLeon Face Plate

SPECIFICATIONS

Operating Frequency.......
  10 kHz
Searchcoil Type..............
  Concentric
Searchcoil Size...............
  9 x 8
Cable Length...................
  Approx. 3'
Audio Freq. All Metal VCO
  Approx. 350 to 950 Hz
Audio Output....................
  2" speaker and headphone jack
Headphone Compatibility..
  " stereo plug
Weight (may vary slightly).
  2.98 lbs
Battery Requirement.........
  Eight AA (alkaline)
Battery Life (typical)..........
  10 to 20 hours
Optimum Temp. Range.....
  30 to 100 F
Optimum Humidity............
  0 to 75% R.H.
Operating Modes.............
  No Motion All Metal
.......................................
  Silent Search Discriminate

The DeLeón is a Target Identification Detector or T.I.D. The DeLeón is designed as an easy to use, turn-on-and-go detector. The faceplate has only four controls: Sensitivity, Discriminate, Threshold and a Mode Switch. It uses the same circuitry as the Cortés, so you can expect the same depth and sensitivity from the DeLeón that the Cortés is well known for.

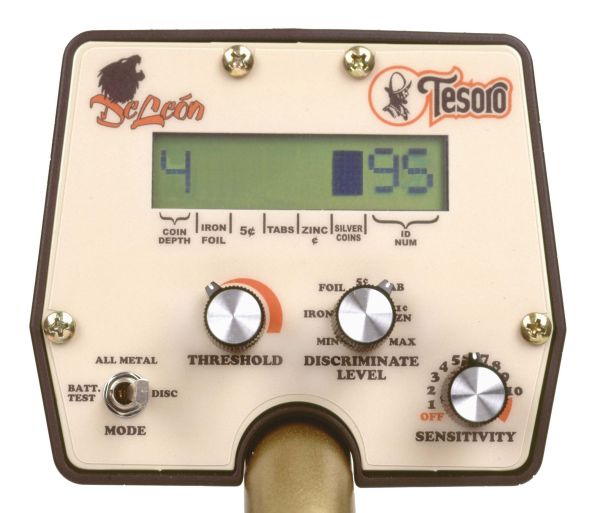

The DeLeón's display screen is one character high by eight characters wide. It is larger and easier to read than the Cortés display but does not carry as much information. Starting from left to right on the faceplate, you will see that the DeLeón has a Coin Depth reading, a five segment bar graph and a two-digit Target ID Number. The bar graph shows several categories for ID purposes, but we recommend that it be used with the ID Number for the most accurate information.

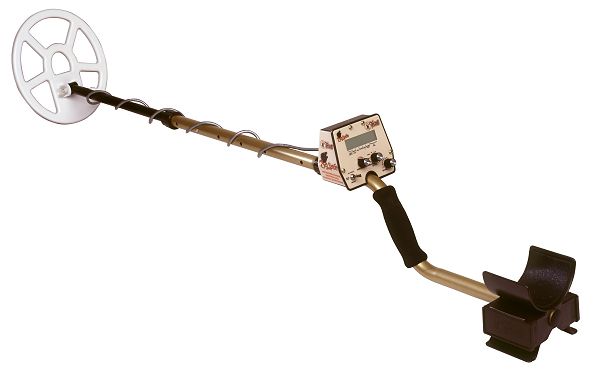

Tesoro DeLeon Metal Detector
