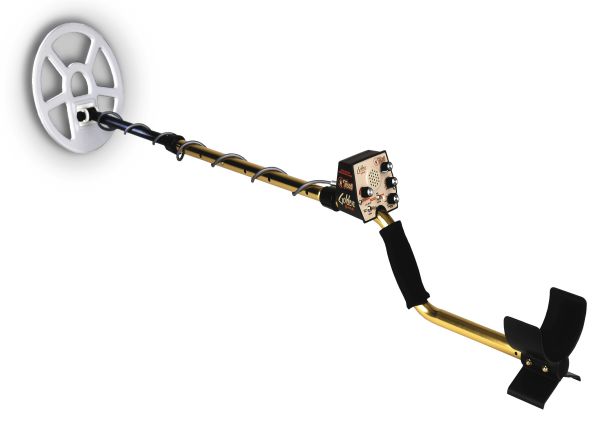

TESORO GOLDEN uMAX METAL DETECTOR
|
|
SPECIFICATIONS
| Operating
Frequency....... |
10
kHz |
| Searchcoil Type.............. |
Concentric |
| Searchcoil Size............... |
9 x
8 Searchcoil |
| Cable Length Approx....... |
3 foot |
Audio
Frequency.............
....................................... |
All
Metal (VCO) 260 to 420 Hz
Disc. 4 tones:240
Hz, 315 Hz, 370 Hz, 500 Hz |
| Audio
Output.................... |
1 1/2
inch speaker and headphone jack |
| Headphone Compatibility. |
1/4
inch stereo plug |
| Weight.............................. |
2.2
pounds (may vary slightly) |
| Battery Requirement.......... |
One
9 volt DC (alkaline) |
| Battery Life........................ |
10-20
hours (typical) |
| Optimum Temp. Range..... |
30°
F to 100° F |
| Optimum Humidity
Range.. |
0 to
75% R.H. |
Operating
Modes..............
........................................
........................................
........................................ |
Silent
Search Discriminate
Notch Norm
Notch Wide (Larger window)
No-Motion
All Metal |
| All Metal Tuning
Mode....... |
Fast
Auto Tune |
|
|
Helping You Sort Things Out
The µMax detector that you have been
waiting for is here - The Golden µMax. This is a detector
that only Tesoro could build. Full size depth, sensitivity,
Four Tone Audio ID and a user adjustable Notch Filter
Discriminate all placed into the lightest detector housing
on the market. At less than 2 ˝ pounds, the Golden µMax
lets you control what you want to find. Our adjustable
notch window lets you, not the engineers, decide how
to pick through the pull tabs to find the nickels and
gold rings, while the ED 120 discrimination knocks out
all of the nasty iron. The tone ID will also give you
a great idea of what your target is. The Golden µMax
will help you define your targets and make better use
of your detecting time.
FEATURES
- MicroMAX Design
- Low Noise Circuitry
- 9 x 8 Coil
- VLF 10 kHz Frequency
- One Drop-in 9 volt Battery
- Silent Search Discriminate Mode
|
- No-Motion All Metal Mode
- 4 Tone Audio ID
- Positive Pole Locking System
- Interchangeable Coils
- Lifetime Warranty
- Built-in Mineral Rejection
|
|
|
|
